◉ PRODUCT SPECIFICATION

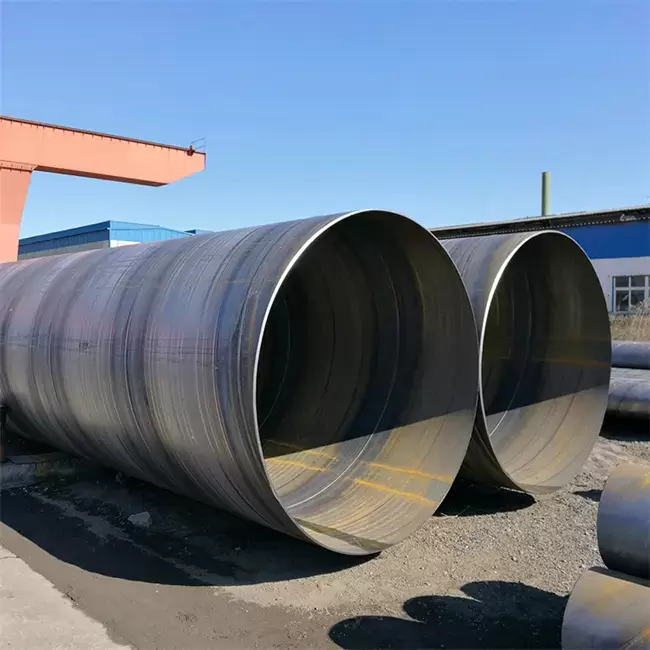

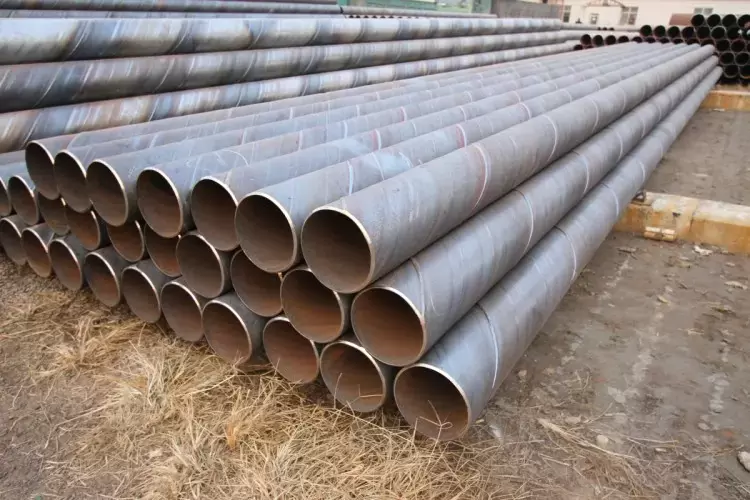

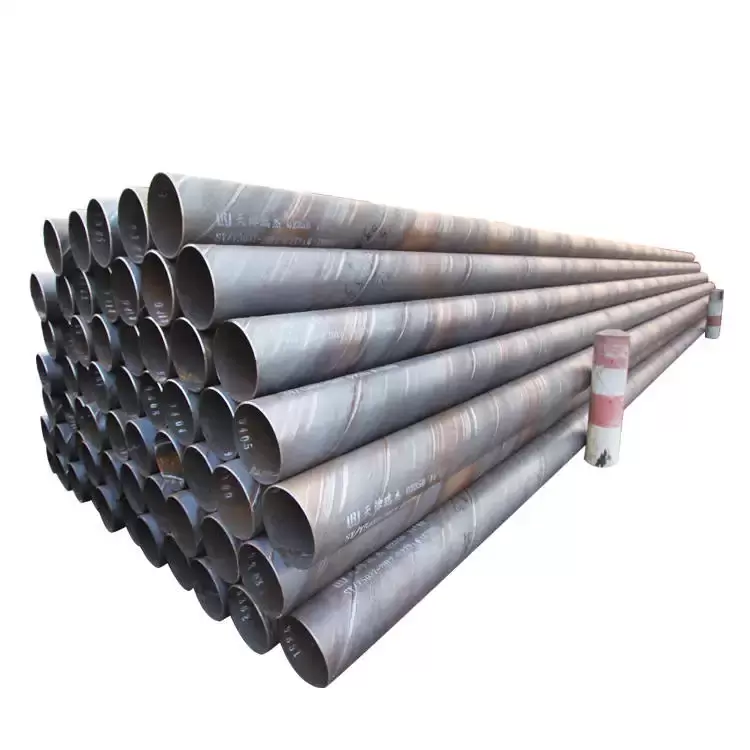

    Spiral steel pipe

Spiral steel pipe is a spiral seam steel pipe made of strip steel coil as raw material, often warm extruded and welded by automatic double wire double-sided submerged arc welding process. The spiral steel pipe sends the strip steel to the welding pipe unit, and the strip steel is rolled by multiple rolls. The strip steel is gradually rolled up to form a circular tube blank with an open gap. Adjust the reduction of the extrusion roll to control the weld gap at 1~3mm, and make both ends of the weld crater flush .



Product  Name  Spiral welded pipe
StandardAPI5L, ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A270, ASTM A249, ASTM A511,ASTM A778 ,ASTM A312,ASTM A358,ASTM A409,ASTM A213,ASTM
A790,ASTM A268,ASTM A269,ASTM A554,ASTM B338,ASTM B673,ASTM B674,ASTM B677,ASTM B675, ASTM B676, ASTM B690,ASTM A928,ASME
B36.19,ASMEB36.10,ASTMA179/A192/A213/A210/370WP91,WP11,WP2
GB5310-2009,GB3087-2008,GB6479-2013,GB9948-2013,GB/T8163-2008, GB8162-2008,GB/T17396-2009
EN10216-5,EN10217-7,DIN 17456,DIN 17458
JIS G3463,JIS G3119,JIS G3446,JIS G3218,JIS G3258,JIS G3448,JIS H4631
DEP 31,DEP 40,DEP 20,DEP 32,DNV-OS-F101
GradeQ195 = S195 / A53 Grade A
Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2
Q345 = S355JR / A500 Grade B Grade C
Outer DiameterERW / HFWLSAW / DSAWSSAW / HSAWRHSSHS
1/8 - 20 inch12 - 56 inch8 - 126 inch40 x 20 mm15 x 15 mm
(10.3-508 mm)(323.8-1,420 mm)(219.1-3,200 mm)-1,000 x 800 mm-1,000× 1,000 mm
Wall Thickness0.4 - 16 mm6.0 - 40 mm6.0 - 26 mm1.0 - 30 mm0.6 - 30 mm
Length5.8~12.0 m or as customized
Surface TreatmentPrime quality (bared, oiled, color paint, 3LPE, or other anti-corrosive treatment)
InspectionWith Chemical Composition and Mechanical Properties Analysis;
Dimensional and Visual Inspection, also with Nondestructive Inspection.


焊管详情

工厂秀 (2)

工厂图碳钢管



For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.
