• Electrolytic Tinplate Coil Sheet

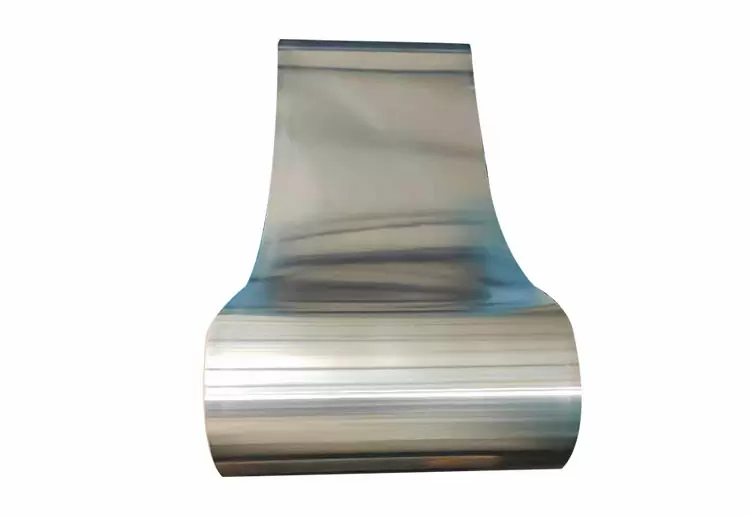

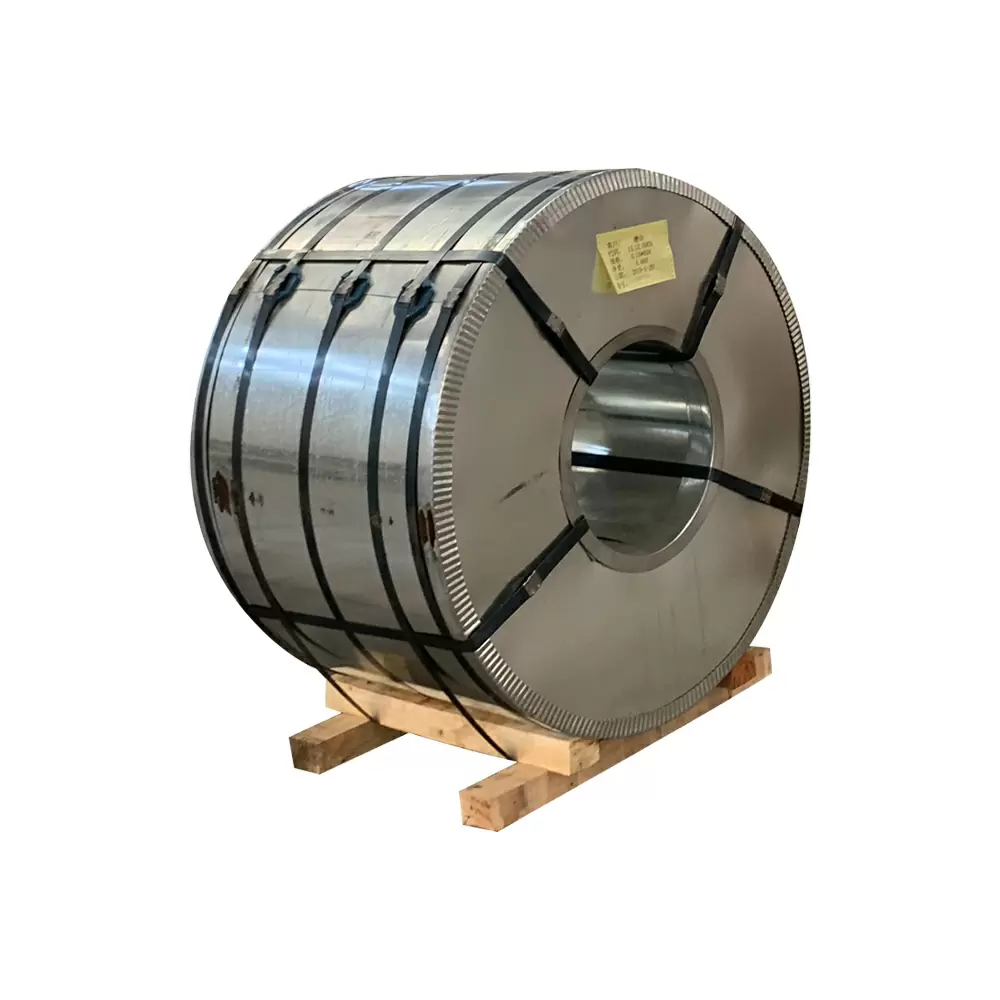

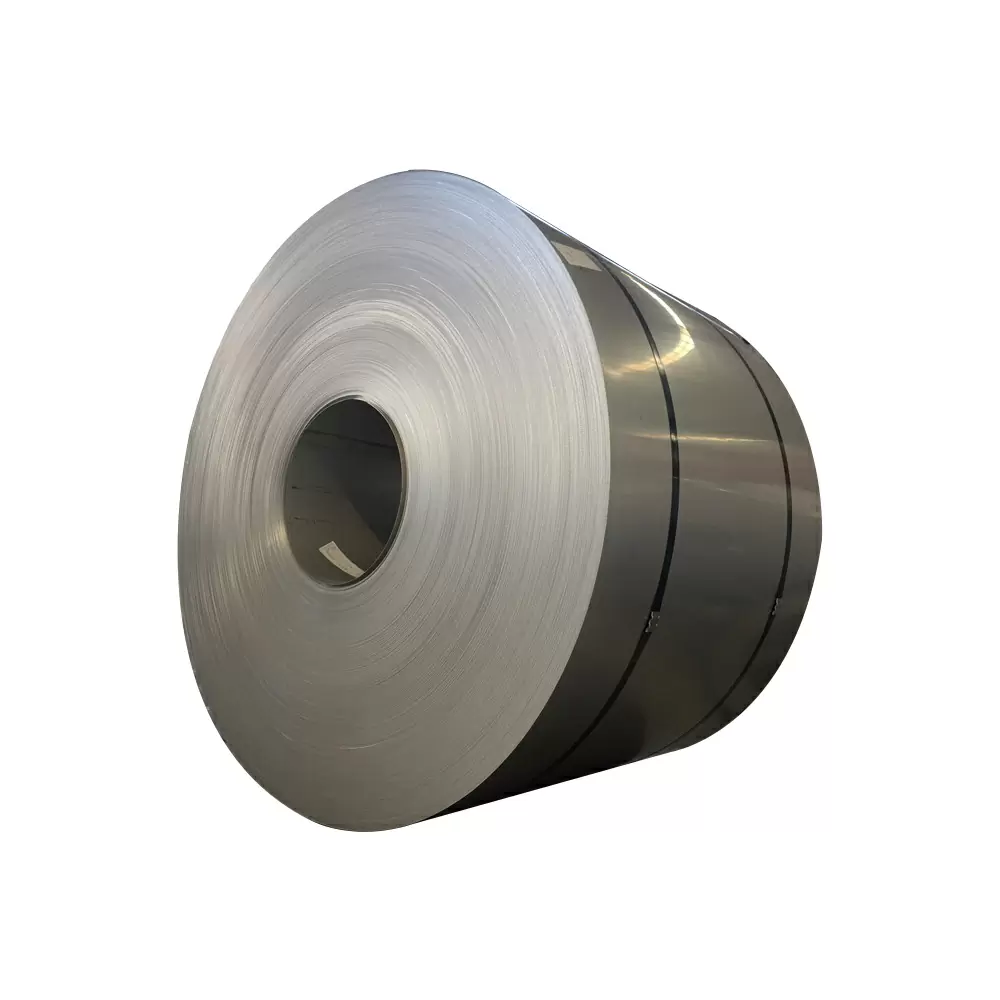

Electrolytic Tinplate Coil Sheet
T1, T2, T2.5, T3, T3.5, T4, T5, DR7, DR8, DR8M, DR9, DR9M, DR10
Phone:+86 16756352222
Email:admin@sdzbsteel.com
WhatsApp:+86 16756352222
Add:Road 8 Gaoji town, liaocheng city Shandong China
Inquire Now

◉ PRODUCT SPECIFICATION

Tinplate (SPTE), also known as tin-plated iron, is an iron sheet plated with tin on both sides, that is a cold-rolled low-carbon thin steel plate, which is rust-proof, corrosion-resistant and non-toxic. Mainly used to make metal packaging,including canned food, beverages, chemicals, medicine, hygiene, coatings,paints, sprays,cosmetic bottle caps, etc.


ShapeCoil, Sheet
Coil ID420mm or 508mm
Coil Weight3-8MT or 6-12MT
Bundle Weight2MT Max
SurfaceBright, Stone, Fine Stone, Sliver, Matt
Post treatmentPassivation, Dos Oil
Processing serviceCut to sheet, scroll cut, lacquer and print service
Application

A. Food Cans (Beverage Cans, Milk Cans, Fruit Cans, Tomato Cans, Edible oil etc. )

B. Industrial Cans (Paint Cans, Chemical Cans, Lube containers)

C. General Line Packaging (Aerosol Can, Gift Cans, Cookies Cans, Stationery Box etc.)

MOQ25MT per size
Delivery Tolerance+/-10%
PackingStandard seaworthy export packing (horizontal or vertical)


Thickness0.14 - 0.50mm
Width600 - 1050mm
LengthAs per customer requirement
Steel TypeMR, SPCC
AnnealingBA (Batch Annealed), CA (Continuously Annealed)
StandardEN10202, JIS G3303, ASTM A623/ A624/ A625/ A626
TemperT1, T2, T2.5, T3, T3.5, T4, T5, DR7, DR8, DR8M, DR9, DR9M, DR10
Coating for ETPEuqally coated (1.1/1.1, 2.0/2.0/ 2.8/2.8/ 5.6/5.6, 8.4/8.4, 11.2/ 11.2)Differetially coated (2.0/1.1, 2.8/1.1, 5.6/1.1, 5.6/2.8, 8.4/2.8, 8.4/5.6, 11.2/2.8, 11.2/5.6, 11.2/8.4, 15.1/5.6)
Coating for TFSMetal Chromium Layer: 50-150mg/m2, Chromium Oxide Layer: 5-35 mg/m2

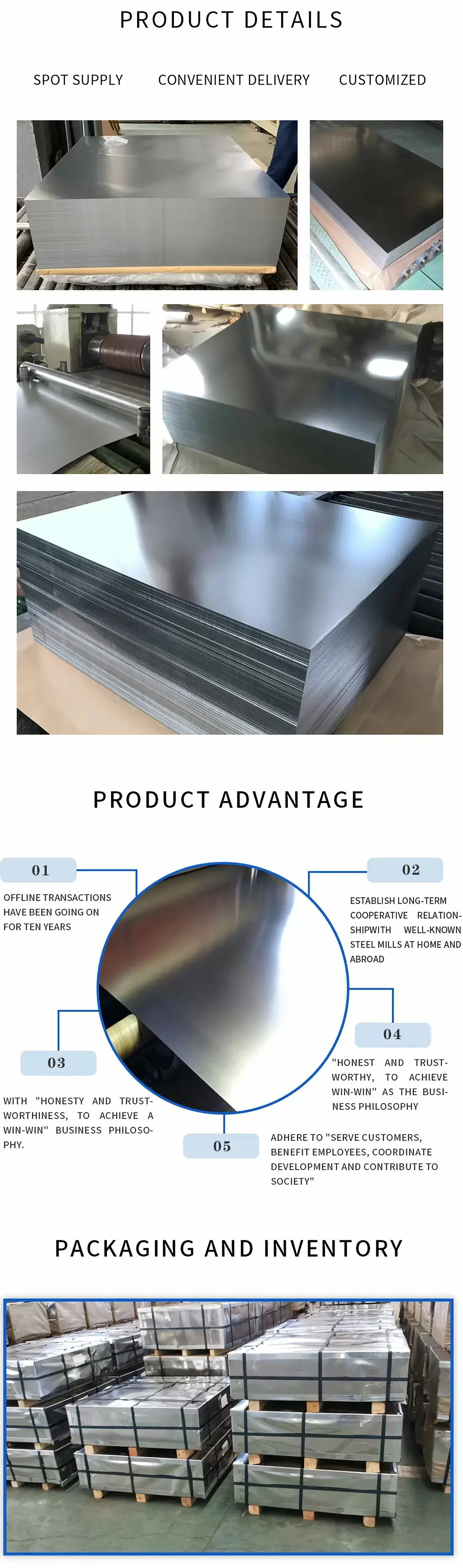

镀锡板-详情图3




For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.
