ETP/TFS Tinplate Sheet

T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 BA & CA

Phone：+86 16756352222

Email：admin@sdzbsteel.com

WhatsApp：+86 16756352222

Add：Road 8 Gaoji town, liaocheng city Shandong China

Inquire Now

◉ PRODUCT SPECIFICATION

Shape	Coil, Sheet
Coil ID	420mm or 508mm
Coil Weight	3-8MT or 6-12MT
Bundle Weight	2MT Max
Surface	Bright, Stone, Fine Stone, Sliver, Matt
Post treatment	Passivation, Dos Oil
Processing service	Cut to sheet, scroll cut, lacquer and print service
Application	A. Food Cans (Beverage Cans, Milk Cans, Fruit Cans, Tomato Cans, Edible oil etc. )B. Industrial Cans (Paint Cans, Chemical Cans, Lube containers)C. General Line Packaging (Aerosol Can, Gift Cans, Cookies Cans, Stationery Box etc.)
MOQ	25MT per size
Delivery Tolerance	+/-10%
Packing	Standard seaworthy export packing (horizontal or vertical)

Thickness	0.14 - 0.50mm
Width	600 - 1050mm
Length	As per customer requirement
Steel Type	MR, SPCC
Annealing	BA (Batch Annealed), CA (Continuously Annealed)
Standard	EN10202, JIS G3303, ASTM A623/ A624/ A625/ A626
Temper	T1, T2, T2.5, T3, T3.5, T4, T5, DR7, DR8, DR8M, DR9, DR9M, DR10
Coating for ETP	Euqally coated (1.1/1.1, 2.0/2.0/ 2.8/2.8/ 5.6/5.6, 8.4/8.4, 11.2/ 11.2)Differetially coated (2.0/1.1, 2.8/1.1, 5.6/1.1, 5.6/2.8, 8.4/2.8, 8.4/5.6, 11.2/2.8, 11.2/5.6, 11.2/8.4, 15.1/5.6)
Coating for TFS	Metal Chromium Layer: 50-150mg/m2, Chromium Oxide Layer: 5-35 mg/m2

Type of Steel

MR	It contains few residual minor constituents and has good corrosion resistance.It is widely used for the applications of containers.
L	It contains particularly few residual minor constituents as Cu, Ni, Cr, Mn.It is suitable for the materials of containers requiring improved corrosion resistance.
D	It is an aluminum killed steel.It is suitable for the applications, that bear deep drawing or other workings which may produce Luder's lines patterns.

Surface finish

Product finish	Steel base	Product	Flow-melted	Surface roughness
Product finish	Steel base	Product	Flow-melted	Ra (μm)
Bright	smooth	Tinplate	Yes	≤ 0.35
Fine stone	fine stone	Tinplate	Yes	0.25 - 0.45
Stone	stone	Tinplate	Yes	0.35 - 0.60
Silver	shot blast	Tinplate	Yes	≥ 0.90
Matt	shot blast	Tinplate	No	Various
Fine stone	fine stone	TFS/ ECCS	-	0.25 - 0.45
Stone	stone	TFS/ ECCS	-	0.35 - 0.60

For the following products, 8.8 refers to the hardness grade of the product model. The steel materials include: galvanized (yellow, white, blackened), and Dacromet for anti-corrosion; the stainless steel materials include: 304, 201, etc. For specific products, please feel free to inquire.

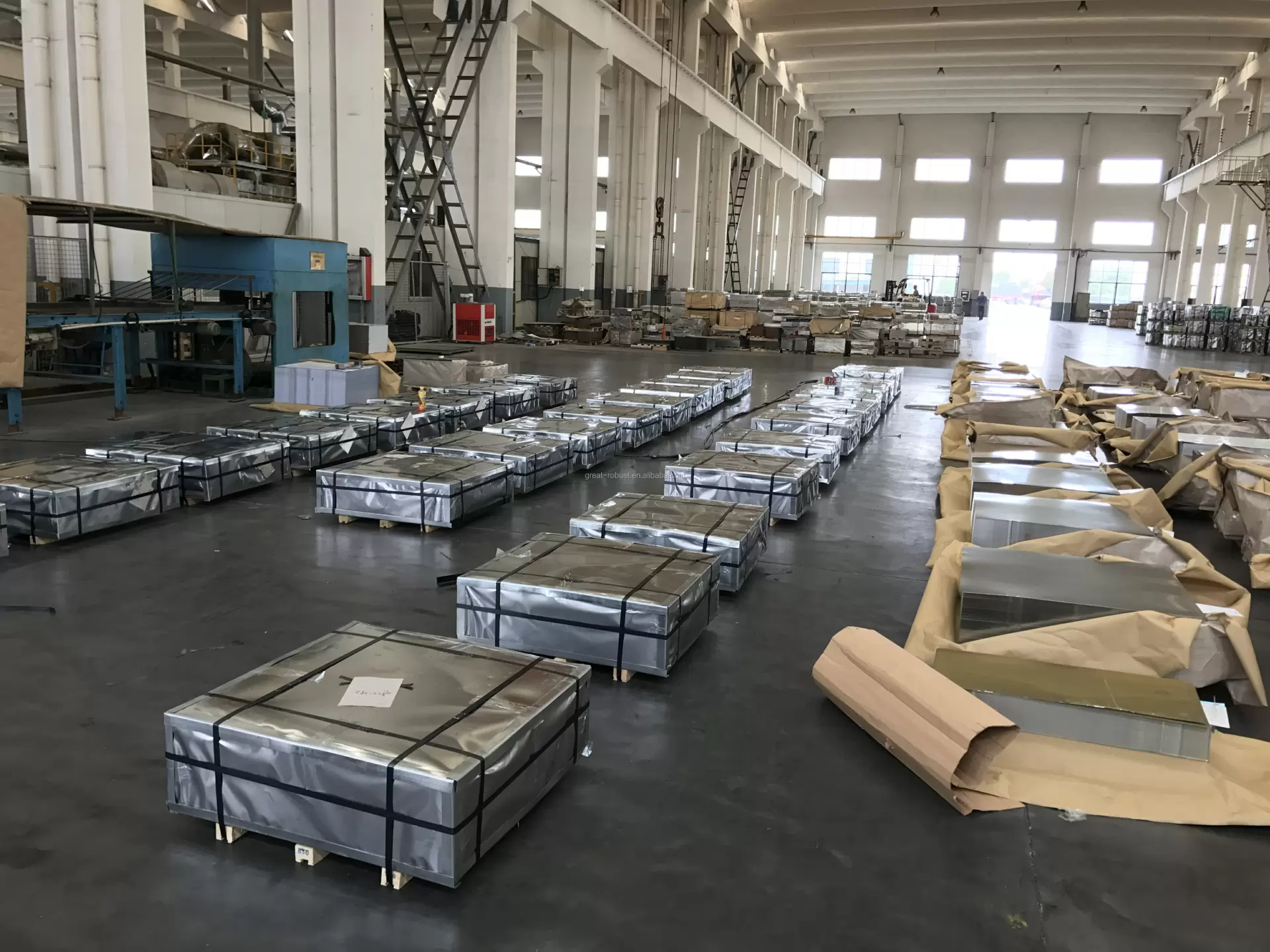

◉ PRODUCTION AND WAREHOUSING
